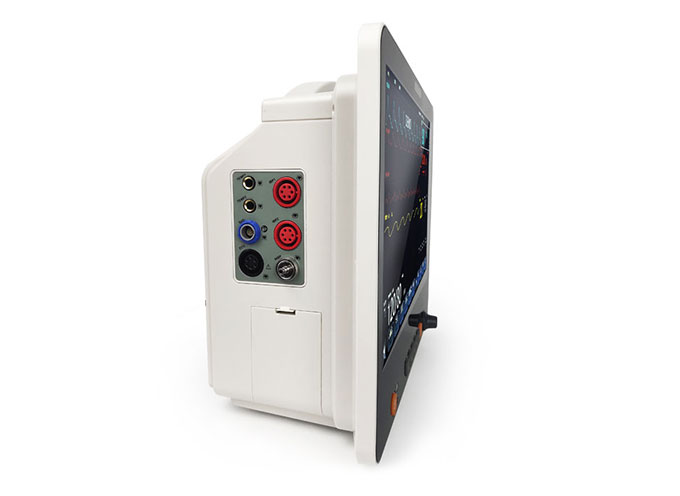

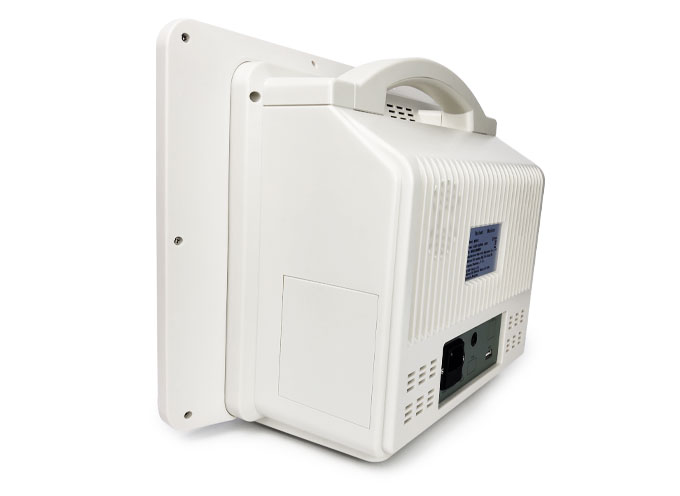

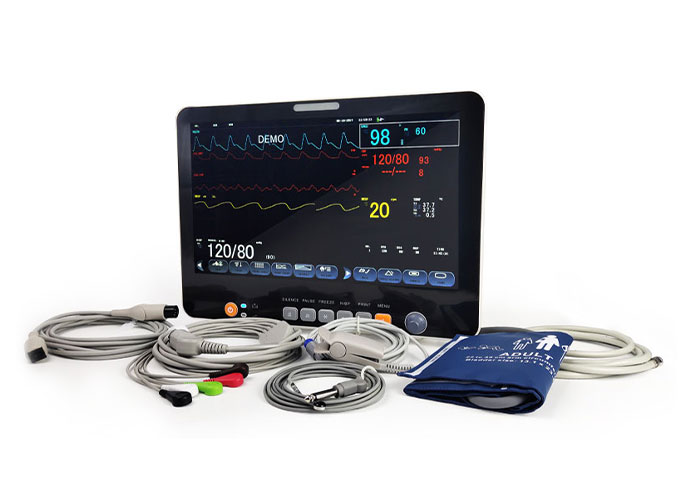

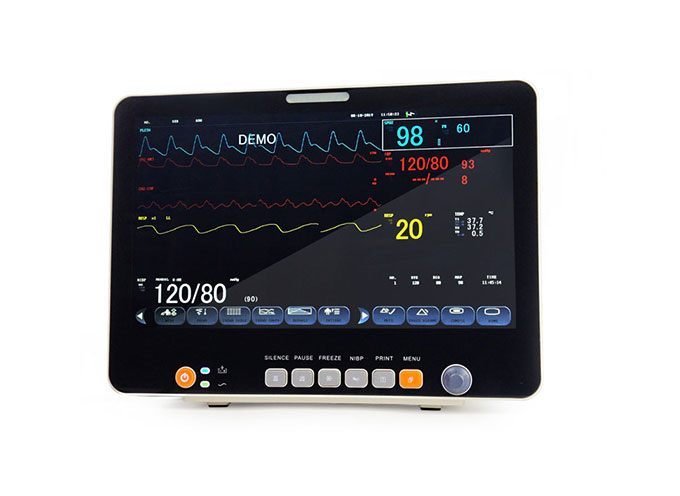

MD9015/MD908D
15 inch color TFT display Multi parameters Patient Monitor;
A variety of display interfaces: large font, standard, full lead, respiratory oxygen, blood pressure trend;
Built-in rechargeable battery, work for 2 hours(more);

15 inch color TFT display Multi parameters Patient Monitor;
A variety of display interfaces: large font, standard, full lead, respiratory oxygen, blood pressure trend;
Built-in rechargeable battery, work for 2 hours(more);

Read More
High resolution 15” color TFT display
12 Channel waves.9 Parameters : ECG, Resp, NIBP, SpO2, TEMP,
Light weight, compact and portable
Built-in rechargeable lithium battery
Unique human voice alarm
Rich screen layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout
Powerful storage: Maximum 720 Hour graphic and tabular trends of all
Parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms
System software can be upgraded through network
Data and waveforms color be adjustable
Arrhythmia analysis and ST segment analysis
Suitable for adult, paediatric and neonatal patient

Options
Invasive Blood Pressure (IBP)
Carbon dioxide ( CO2) Module
Thermal Printer
Touch Screen
Three display output: TTL / CMOS LCD, LVDS LCD and standard VGA output

Built-in Wifi (MD9015)
ECG
Lead Mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL, V)
Lead selection I, II, III, avR, avL, avF, V,
Waveform 2 ch
Lead mode 3 Leads ( R, L, F or RA, LA, LL)
Lead selection I, II, III,
Waveform 1 ch
Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
HR and Alarm
      Range
      Adult 15 ~ 300 bpm
      Neo/Ped 15 ~ 350 bpm
      Accuracy ± 1% or ± 1bpm, which great
      Resolution 1 bpm
     Sensitivity > 200 (uV )
Differential Input Impedance > 5 MΩ
CMRR
      Monitor > 105 dB
     Operation > 105 dB
     Diagnosis > 85 dB
Electrode offset potential ±300mV
Leakage Current < 10 uA
Baseline Recovery < 3 S After Defi.
ECG Signal Range ±8 m V ( Vp-p )
Bandwidth
     Surgery 1 ~ 15 Hz
     Monitor 0.5 ~ 35 Hz
     Diagnostic 0.05 ~ 100 Hz
Calibration Signal 1 (mV ), Accuracy : ±5%
ST Segment Monitoring Range
Measure and Alarm -2.0 ~ +2.0 mV
ARR Detecting
Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
    Alarm Available
    Review Available

RESPARATION
Method Impedance between RF (RA-LL)
Differential Input Impedance >2.5 MΩ
Measuring Impedance Range: 0.3~5.0Ω
Base line Impedance Range: 0 – 2.5 KΩ
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Range
     Adult 0 ~ 120 rpm
     Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm
Accuracy ±2 rpm
Apean Alarm 10 ~ 40 S

NIBP
Method Oscillometric
Mode Manual, Auto, STAT
Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40 ~ 240 bpm
Alarm Type SYS, DIA, MEAN
Measuring and alarm range
Adult Mode
             SYS 40 ~ 270 mmHg
             DIA 10 ~ 215 mmHg
             MEAN 20 ~ 235 mmHg
Pediatric Mode
             SYS 40 ~ 200 mmHg
             DIA 10 ~ 150 mmHg
             MEAN 20 ~ 165 mmHg
Neonatal Mode
             SYS 40 ~ 135 mmHg
             DIA 10 ~ 100 mmHg
             MEAN 20 ~ 110 mmHg
Resolution
              Pressure 1mmHg
              Accuracy
              Pressure
Maximum Mean error ±5mmHg
Maximum Standard deviation ±8mmHg
Overpressure Protection
             Adult Mode 297±3 mmHg
             Pediatric Mode 240±3 mmHg
             Neonatal Mode 147±3 mmHg

SpO2
Measuring Range 0 ~ 100 %
Alarm Range 0 ~ 100 %
Resolution 1 %
Accuracy 70% ~ 100% ±2 %
                                     0% ~ 69% unspecified
Actualization interval about 1 Sec.
Alarm Delay 10 Sec.
Pulse Rate
Measuring and Alarm Range 0~254bpm
Resolution 1bpm
 Accuracy ±2bpm

TEMPERATURE
Channel 1
Measuring and Alarm Range 0 ~ 50 C
Resolution 0.1~C
Accuracy ±0.1~C
Actualization interval about 1 Sec.
Average Time Constant < 10 Sec.

IBP
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
    ART 0 ~ 300 mmHg
    PA -6 ~ 120 mmHg
    CVP/RAP/LAP/ICP -10 ~ 40 mmHg
    P1/P2 -10 ~ 300 mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
   Impedance 300-3000Ω
   Resolution 1 mmHg
   Accuracy ±2% or ±1mmHg, which great about 1 Sec.


Product Features

    High resolution 15” color TFT display
    12 Channel waves.9 Parameters : ECG, Resp, NIBP, SpO2, TEMP,
    Light weight, compact and portable
    Built-in rechargeable lithium battery
    Unique human voice alarm
    Rich screen layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout
    Powerful storage: Maximum 720 Hour graphic and tabular trends of all
    Parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms
    System software can be upgraded through network
    Data and waveforms color be adjustable
    Arrhythmia analysis and ST segment analysis
    Suitable for adult, paediatric and neonatal patient

    Options
    Invasive Blood Pressure (IBP)
    Carbon dioxide ( CO2) Module
    Thermal Printer
    Touch Screen
    Three display output: TTL / CMOS LCD, LVDS LCD and standard VGA output

    Built-in Wifi (MD9015)

Product Specifications

    ECG
    Lead Mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL, V)
    Lead selection I, II, III, avR, avL, avF, V,
    Waveform 2 ch
    Lead mode 3 Leads ( R, L, F or RA, LA, LL)
    Lead selection I, II, III,
    Waveform 1 ch
    Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
    HR and Alarm
          Range
          Adult 15 ~ 300 bpm
          Neo/Ped 15 ~ 350 bpm
          Accuracy ± 1% or ± 1bpm, which great
          Resolution 1 bpm
         Sensitivity > 200 (uV )
    Differential Input Impedance > 5 MΩ
    CMRR
          Monitor > 105 dB
         Operation > 105 dB
         Diagnosis > 85 dB
    Electrode offset potential ±300mV
    Leakage Current < 10 uA
    Baseline Recovery < 3 S After Defi.
    ECG Signal Range ±8 m V ( Vp-p )
    Bandwidth
         Surgery 1 ~ 15 Hz
         Monitor 0.5 ~ 35 Hz
         Diagnostic 0.05 ~ 100 Hz
    Calibration Signal 1 (mV ), Accuracy : ±5%
    ST Segment Monitoring Range
    Measure and Alarm -2.0 ~ +2.0 mV
    ARR Detecting
    Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
        Alarm Available
        Review Available

    RESPARATION
    Method Impedance between RF (RA-LL)
    Differential Input Impedance >2.5 MΩ
    Measuring Impedance Range: 0.3~5.0Ω
    Base line Impedance Range: 0 – 2.5 KΩ
    Bandwidth 0.3 ~ 2.5 Hz
    Resp. Rate
    Measuring and Alarm Range
         Adult 0 ~ 120 rpm
         Neo/Ped 0 ~ 150 rpm
    Resolution 1 rpm
    Accuracy ±2 rpm
    Apean Alarm 10 ~ 40 S

    NIBP
    Method Oscillometric
    Mode Manual, Auto, STAT
    Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
    Measuring Period in STAT Mode 5 Min
    Pulse Rate Range 40 ~ 240 bpm
    Alarm Type SYS, DIA, MEAN
    Measuring and alarm range
    Adult Mode
                 SYS 40 ~ 270 mmHg
                 DIA 10 ~ 215 mmHg
                 MEAN 20 ~ 235 mmHg
    Pediatric Mode
                 SYS 40 ~ 200 mmHg
                 DIA 10 ~ 150 mmHg
                 MEAN 20 ~ 165 mmHg
    Neonatal Mode
                 SYS 40 ~ 135 mmHg
                 DIA 10 ~ 100 mmHg
                 MEAN 20 ~ 110 mmHg
    Resolution
                  Pressure 1mmHg
                  Accuracy
                  Pressure
    Maximum Mean error ±5mmHg
    Maximum Standard deviation ±8mmHg
    Overpressure Protection
                 Adult Mode 297±3 mmHg
                 Pediatric Mode 240±3 mmHg
                 Neonatal Mode 147±3 mmHg

    SpO2
    Measuring Range 0 ~ 100 %
    Alarm Range 0 ~ 100 %
    Resolution 1 %
    Accuracy 70% ~ 100% ±2 %
                                         0% ~ 69% unspecified
    Actualization interval about 1 Sec.
    Alarm Delay 10 Sec.
    Pulse Rate
    Measuring and Alarm Range 0~254bpm
    Resolution 1bpm
     Accuracy ±2bpm

    TEMPERATURE
    Channel 1
    Measuring and Alarm Range 0 ~ 50 C
    Resolution 0.1~C
    Accuracy ±0.1~C
    Actualization interval about 1 Sec.
    Average Time Constant < 10 Sec.

    IBP
    Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
    Measuring and alarm range
        ART 0 ~ 300 mmHg
        PA -6 ~ 120 mmHg
        CVP/RAP/LAP/ICP -10 ~ 40 mmHg
        P1/P2 -10 ~ 300 mmHg
    Press Sensor
    Sensitivity 5 uV/V/mmHg
       Impedance 300-3000Ω
       Resolution 1 mmHg
       Accuracy ±2% or ±1mmHg, which great about 1 Sec.
