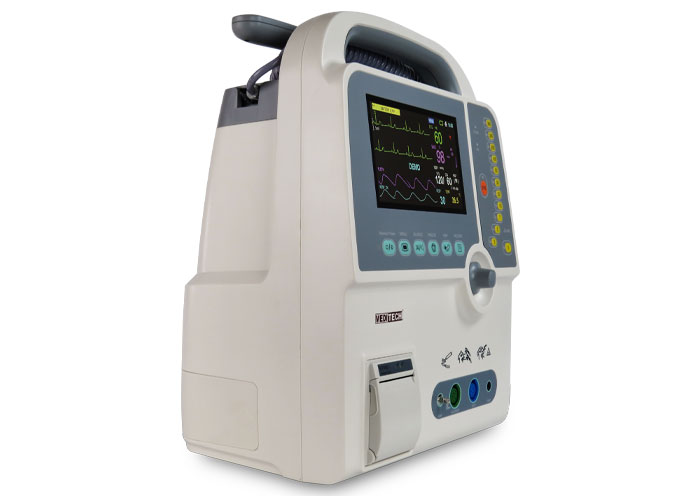

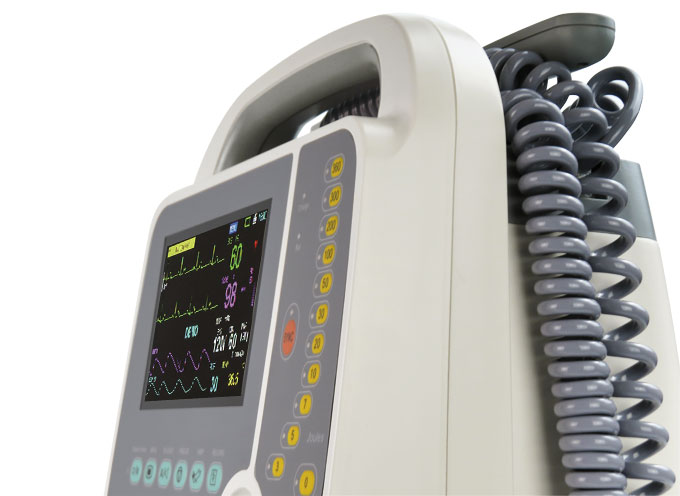

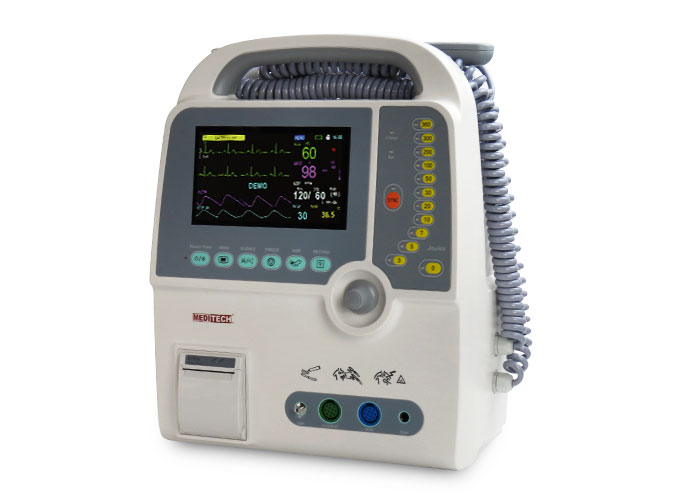

Defi® 9
Defi® 9 is a compact durable light weighted defibrillator which integrated monitoring manual defibrillation.
It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics

Multi-parameters patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
Defi® 9 is a compact durable light weighted defibrillator which integrated monitoring manual defibrillation.
It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics

Multi-parameters patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP

Product Features

Defibrillator:
Large TFT screen 7 inch
Built in multi parameter patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
Defibrillator type   Manual Synchronized A synchronized
Output waveform        Monophonic technology
                                    Biphasic technology (optional)
Energy accuracy   ∠+1%
Energy selection  0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
Charging time       Maximum 8 seconds to 360 Joules
Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
Come with two battery for longer capacity

Product Specifications

Related Accessories

Product Features

    Defibrillator:
    Large TFT screen 7 inch
    Built in multi parameter patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
    Defibrillator type   Manual Synchronized A synchronized
    Output waveform        Monophonic technology
                                        Biphasic technology (optional)
    Energy accuracy   ∠+1%
    Energy selection  0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
    Charging time       Maximum 8 seconds to 360 Joules
    Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
    Come with two battery for longer capacity

Product Specifications

    Defibrillator:
    Defibrillator type        Manual Synchronized A synchronized
    Output waveform       Monophonic technology
                                      Biphasic technology (optional)
    Energy accuracy        ∠+1%
    Energy selection         0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
    Charging time            Maximum 8 seconds to 360 Joules
    Standard Adult/Pediatric Paddles: Reusable external adult paddles(pediatric paddles integrated)

    Patient Monitor:
    7''TFT display

    ECG:
    ECG lead:                ⅠⅡⅢ a VR a VL a VF V1-V6

    Pulse Rate:
    Pulse range:             0-300bpm  Pulse accuracy: ±2bpm

    NIBP:
    Method:                     automatic oscillation
    Working mode:          manual/automatic
    Measure: adult:         10-250mmHg
    Ement: pediatric:       10-200mmHg
    Rage: neonatal:        10-135mmHg

    TEMP:
    Measurement range: 20-45。C

    SpO2:
    Pulse Oximetry (spO2)
    Display:                     SpO2 value pulse histongram waveform Pulse
    Range:                      0~99%for adult pediatric and neonatal patients
    Probe:                       standard adult finger clip


    Options

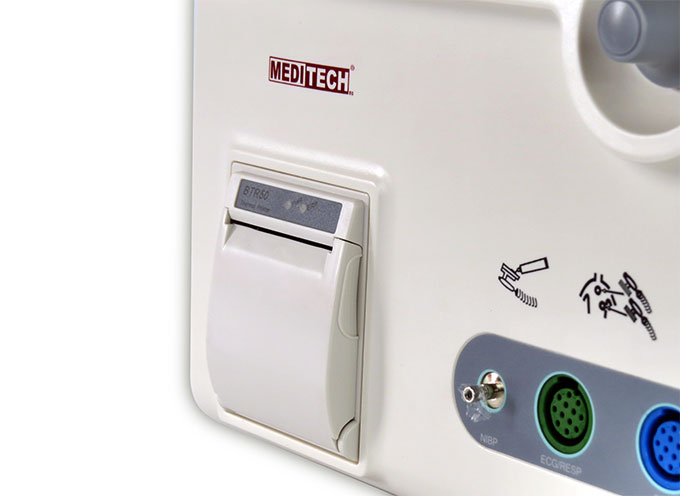

    Recorder (Printer)



Related Accessories
