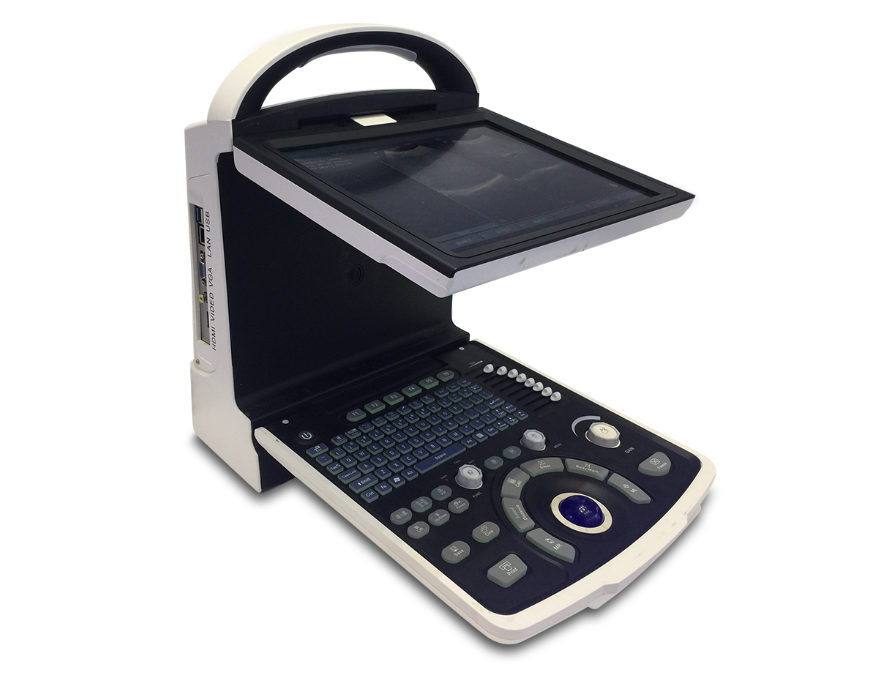

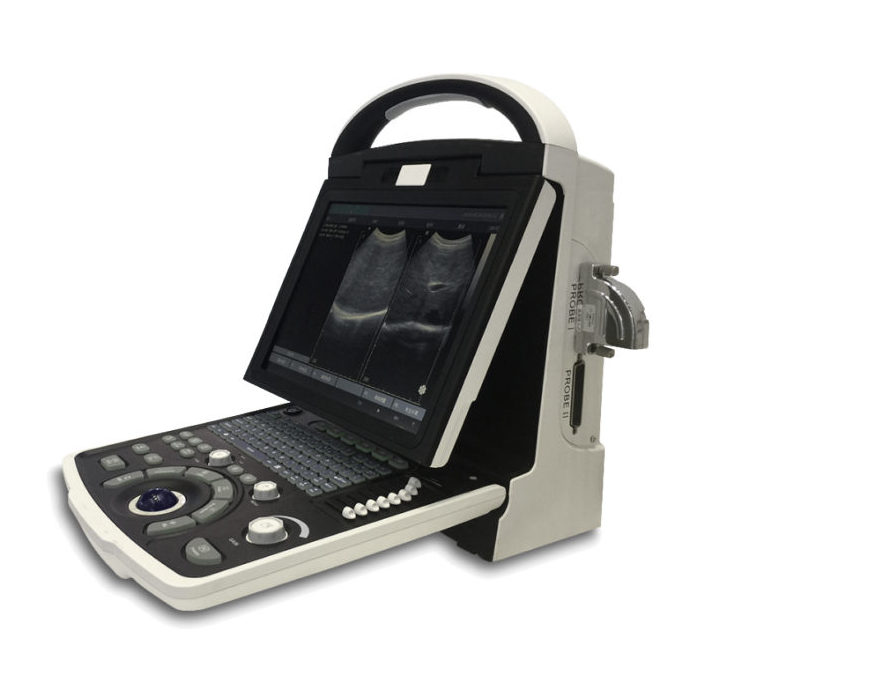

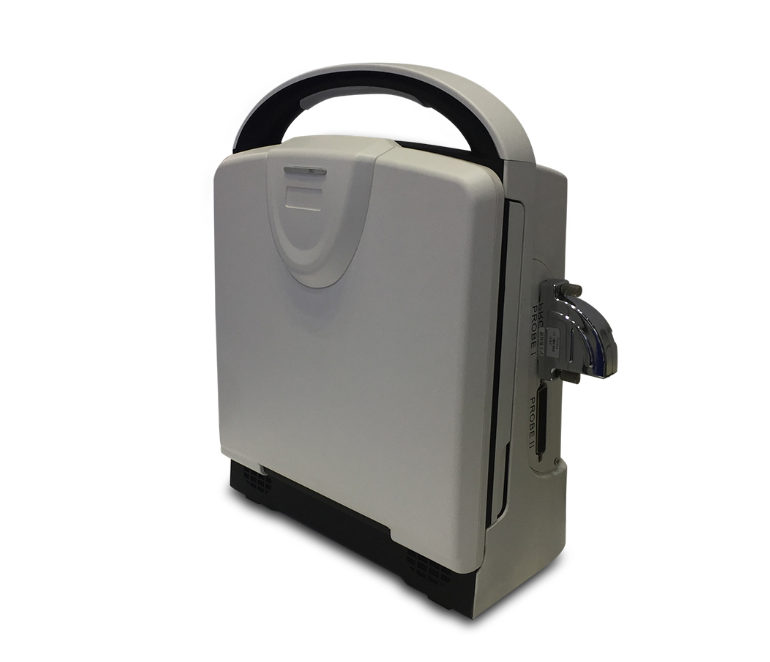

S4i
S4i adopts advanced high-precision digital  beam former, acontinuous dynamic focusing, dynamic aperture and dynamic
apodization  changes, making the image real, rich in detail
It has powerful  standard PC platform, professional  design and easy operation of the control panel which meets the increasing
requirements of the clinical  diagnosis.

Data recording and transfer software

S4i adopts advanced high-precision digital  beam former, acontinuous dynamic focusing, dynamic aperture and dynamic
apodization  changes, making the image real, rich in detail
It has powerful  standard PC platform, professional  design and easy operation of the control panel which meets the increasing
requirements of the clinical  diagnosis.

Data recording and transfer software

Read More
Full digital imaging technology
Crystal-clear Image
Computer platforms, Abundant functions
Powerful image and report management
10 inch no interlaced CRT monitor
Silica gel backlight keyboard
DICOM display and transfer
Pretty, portable and light
Large volume Storage and cine loop
128/256/512/1024 frame cine loop
Broadband Multi frequency probes
8 segment TGC, 16 step zoom
Complete application software packages
2 probe connector
Compatible with USB laser/inkjet printers
3D Image Function(optional)

  • THI
  • Imaging technologies
  • Intelligent   Speckle Reduction
  • 3D reconstruction
  • Abundant user management functions
  • One key recording
  • User defined OB table
  • Expert vocabulary   and report  templates

Displaying mode:      B mode, B/B mode, B/M mode, M mode, 4B mode
Scanning mode:         Electric convex, Electric linear, Electric micro-convex
Displaying depth: 20mm-310mm
Probe  port:               1 OR 2
Voltage:                    AC100V-240V
Output port:              USB,DICOM,VGA,
Gray scale:                256
Time gain:                 Gain:10~255dB adjustable ;time gain compensation(TGC): 8 segments, which can be adjusted independently in B mode and M mode.
Storage function:       image storage, cine loop storage, mass storage capacity≥10G.measurement result storage, report storage
Cine-loop:                  64,128,256,512,1024 frames can be chosen;auto/manual cine loop
Patient information:   Hospital name; patient name; case number; patient age; gender;
Focusing mode:         1-4 selectable focus , multiple combination way, focus position moving available
Real-time zoom, local zoom: Multi-stage display rate(depth ascension)function, roll line function
Annotation function: Annotation at the image area

Annotation of patient information
Body mark: 140
Cursor: The combination of Trackball and keyboard
Color display:          43 color display function
DC-AC: AC/DC
Report: Display, storage and print report directly.
Variable angle scanning: 16kinds of angle scanning include:25%,30%,35%,…100
Image processing: Pre-processing, post-processing,  dynamic range, frame correlation, line correlation, edge enhancement, black/white conversion, left/right conversion, up/down conversion, contrast, brightness, gamma correction
Dynamic range: Continuously adjustable: 20~150dB
Measurement and calculation: B mode: distance, circumstance, area, volume, angle, histogram, hip joint angle
M mode:                    heart rate, time, slope
Abdomen:                  uterus, cervix, endometrial, ovary, ovarian follicle, cyst, enclosed mass
Obstetric:                 14(AC,BPD,CRL,FL,THD,GS,OFD,HUMERUS,TIDIA,ULNA,HC,TAD,APTD,FTA)measure gestation age, fetal weight, AFI
Cardiology:               LV.LV function, LVPW,RVAWT, aorta, mistral valve
Urology:                   L/R kidney volume, bladder volume, prostate volume
Small organs:           Ophthalmology. Thyroid, residual urine volume

Standard:

Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
B/W Laser printer
Footswitch
Battery
Trolley
Ultrasonic work-station
Carrying Bag


Product Features

    Full digital imaging technology
    Crystal-clear Image
    Computer platforms, Abundant functions
    Powerful image and report management
    10 inch no interlaced CRT monitor
    Silica gel backlight keyboard
    DICOM display and transfer
    Pretty, portable and light
    Large volume Storage and cine loop
    128/256/512/1024 frame cine loop
    Broadband Multi frequency probes
    8 segment TGC, 16 step zoom
    Complete application software packages
    2 probe connector
    Compatible with USB laser/inkjet printers
    3D Image Function(optional)

    • THI
    • Imaging technologies
    • Intelligent   Speckle Reduction
    • 3D reconstruction
    • Abundant user management functions
    • One key recording
    • User defined OB table
    • Expert vocabulary   and report  templates

Product Specifications

    Displaying mode:      B mode, B/B mode, B/M mode, M mode, 4B mode
    Scanning mode:         Electric convex, Electric linear, Electric micro-convex
    Displaying depth: 20mm-310mm
    Probe  port:               1 OR 2
    Voltage:                    AC100V-240V
    Output port:              USB,DICOM,VGA,
    Gray scale:                256
    Time gain:                 Gain:10~255dB adjustable ;time gain compensation(TGC): 8 segments, which can be adjusted independently in B mode and M mode.
    Storage function:       image storage, cine loop storage, mass storage capacity≥10G.measurement result storage, report storage
    Cine-loop:                  64,128,256,512,1024 frames can be chosen;auto/manual cine loop
    Patient information:   Hospital name; patient name; case number; patient age; gender;
    Focusing mode:         1-4 selectable focus , multiple combination way, focus position moving available
    Real-time zoom, local zoom: Multi-stage display rate(depth ascension)function, roll line function
    Annotation function: Annotation at the image area

    Annotation of patient information
    Body mark: 140
    Cursor: The combination of Trackball and keyboard
    Color display:          43 color display function
    DC-AC: AC/DC
    Report: Display, storage and print report directly.
    Variable angle scanning: 16kinds of angle scanning include:25%,30%,35%,…100
    Image processing: Pre-processing, post-processing,  dynamic range, frame correlation, line correlation, edge enhancement, black/white conversion, left/right conversion, up/down conversion, contrast, brightness, gamma correction
    Dynamic range: Continuously adjustable: 20~150dB
    Measurement and calculation: B mode: distance, circumstance, area, volume, angle, histogram, hip joint angle
    M mode:                    heart rate, time, slope
    Abdomen:                  uterus, cervix, endometrial, ovary, ovarian follicle, cyst, enclosed mass
    Obstetric:                 14(AC,BPD,CRL,FL,THD,GS,OFD,HUMERUS,TIDIA,ULNA,HC,TAD,APTD,FTA)measure gestation age, fetal weight, AFI
    Cardiology:               LV.LV function, LVPW,RVAWT, aorta, mistral valve
    Urology:                   L/R kidney volume, bladder volume, prostate volume
    Small organs:           Ophthalmology. Thyroid, residual urine volume


Related Accessories

    Standard:

    Multi frequency convex probe ...... 1Pcs
    Power Cable  ............................... 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    7.5MHz high-frequency linear array probe
    6.5MHz intra-cavity (trans-vaginal) probe
    7.5MHz rectal probe
    3.5MHz micro-convex probe
    B/W Laser printer
    Footswitch
    Battery
    Trolley
    Ultrasonic work-station
    Carrying Bag
