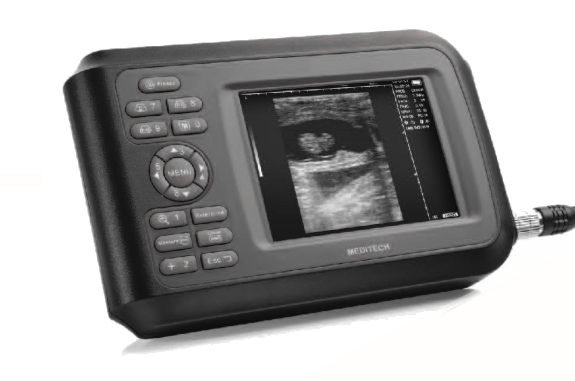

Sono R
Sono R palm ultrasound scanner ,light weight 1.3KG,clear image quality.
The interchangeable probes offer a wide range of diagnostic applications.
Handheld Ultrasound Scanner scanner for family doctors,clinic and hospital.

Complete software and the high product versatility are available in it.
Sono R palm ultrasound scanner ,light weight 1.3KG,clear image quality.
The interchangeable probes offer a wide range of diagnostic applications.
Handheld Ultrasound Scanner scanner for family doctors,clinic and hospital.

Complete software and the high product versatility are available in it.
Read More
Monitor: 5.5 inch TFT color LCD
Full digital beam forming technology
Gama correction, histogram& Scanning angle adjustment
Display Mode: B,B+B,4B,B+M,M
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
4 focusing combination selectable
PAL-D output
Gray Scale: 256 levels
256 frames for cine-memory,64 image permanent storage
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
USB 2.0 For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal

Power supply: AC100-240v, 50/60Hz  DC: 16.8v rechargeable, Lithium battery Capacity 180 minute continue working
Dimensions: 265mmx46mmx53mm
Weight: 700g.


Probe linear probe
6.5MHz Rectal probe
convex probe micro-convex probe
Detect Depth(mm) ≥80 ≥140 ≥90
Resolution
(mm)
Lateral ≤1 (Depth≤60) ≤3 (Depth≤80)
≤5 (80<Depth≤130)
≤3 (Depth≤60)
Axial ≤1 (Depth≤80) ≤1 (Depth≤80) ≤1 (Depth≤60)
Blind zone(mm) ≤3 ≤6 ≤5
Geometric position precision Horizontal ≤5 ≤7.5 ≤7.5
Vertical ≤5 ≤5 ≤5
Monitor size 5 inch
Display mode B, B+B, B+M, M, 4B
Image gray scale 256
Image storage 64
Cine loop ≥400 frame
Scan depth 70 mm~140 mm
Image flip Up/down, left/right
Focus position Adjustable
posture mark 16
Image Process Histogram, Color encode, GAMA, Image Smoothen
Probe Frequency Adjustable(3 point each probe)
Frame correlation Adjustable
Measurement Distance, circumference, area, volume, heart rate. GA,EDD
Notation Date, time, name, sex, age, hospital name、Full screen words edit
output report Measurement
Output USB2.0,   VIDEO(PALD, NTSC)
Battery Continuous work ≥2Hours

Standard:

Multi frequency convex probe ...... 1Pcs
Hard Case ................................... 1Pcs
Silicon Case    ............................. 1Pcs
Power Adapter    .......................... 1Pcs
Chargable Battery  ....................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
DC Car Charger
USB Cable

Product Features

    Monitor: 5.5 inch TFT color LCD
    Full digital beam forming technology
    Gama correction, histogram& Scanning angle adjustment
    Display Mode: B,B+B,4B,B+M,M
    Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
    4 focusing combination selectable
    PAL-D output
    Gray Scale: 256 levels
    256 frames for cine-memory,64 image permanent storage
    Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
    15 difference kinds of body marks with difference calipers.
    Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
    Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
    USB 2.0 For real-time picture uploading to PC
    Scanning Method: Convex, Micro-convex, Linear, rectal

    Power supply: AC100-240v, 50/60Hz  DC: 16.8v rechargeable, Lithium battery Capacity 180 minute continue working
    Dimensions: 265mmx46mmx53mm
    Weight: 700g.


Product Specifications


    Probe linear probe
    6.5MHz Rectal probe
    convex probe micro-convex probe
    Detect Depth(mm) ≥80 ≥140 ≥90
    Resolution
    (mm)
    Lateral ≤1 (Depth≤60) ≤3 (Depth≤80)
    ≤5 (80<Depth≤130)
    ≤3 (Depth≤60)
    Axial ≤1 (Depth≤80) ≤1 (Depth≤80) ≤1 (Depth≤60)
    Blind zone(mm) ≤3 ≤6 ≤5
    Geometric position precision Horizontal ≤5 ≤7.5 ≤7.5
    Vertical ≤5 ≤5 ≤5
    Monitor size 5 inch
    Display mode B, B+B, B+M, M, 4B
    Image gray scale 256
    Image storage 64
    Cine loop ≥400 frame
    Scan depth 70 mm~140 mm
    Image flip Up/down, left/right
    Focus position Adjustable
    posture mark 16
    Image Process Histogram, Color encode, GAMA, Image Smoothen
    Probe Frequency Adjustable(3 point each probe)
    Frame correlation Adjustable
    Measurement Distance, circumference, area, volume, heart rate. GA,EDD
    Notation Date, time, name, sex, age, hospital name、Full screen words edit
    output report Measurement
    Output USB2.0,   VIDEO(PALD, NTSC)
    Battery Continuous work ≥2Hours


Related Accessories

    Standard:

    Multi frequency convex probe ...... 1Pcs
    Hard Case ................................... 1Pcs
    Silicon Case    ............................. 1Pcs
    Power Adapter    .......................... 1Pcs
    Chargable Battery  ....................... 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    7.5MHz high-frequency linear array probe
    6.5MHz intra-cavity (trans-vaginal) probe
    7.5MHz rectal probe
    3.5MHz micro-convex probe
    DC Car Charger
    USB Cable
