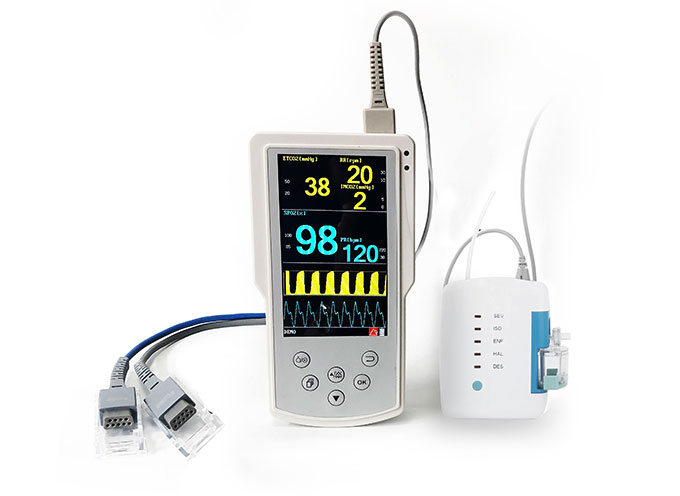

Hand-held Multi-Gas Analyzer Capnoxi® Plus AG
Capnoxi® plus AG

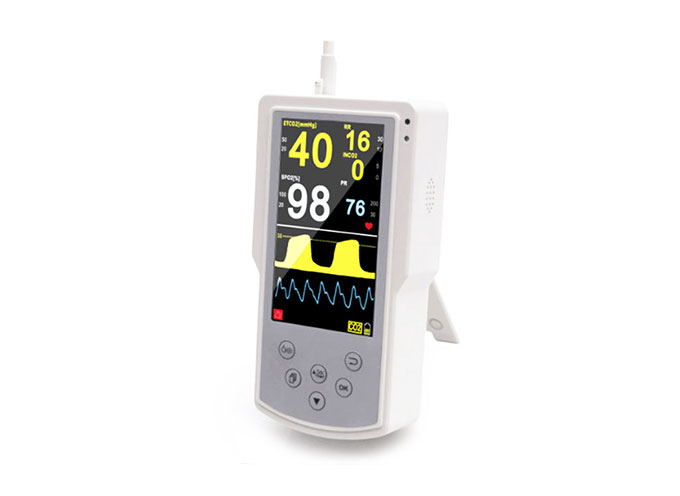

Handheld EtCO2 monitor Detecting gas: EtCO2, FiCO2, RR,EtN2O, FiN2O, EtAA, FiAA. High Precision.
anesthesia agent analyzer used to measure EtCO2, FiCO2, RR, EtN2O, FiN2O, EtAA, FiAA.
Capnoxi® plus AG
Handheld EtCO2 monitor Detecting gas: EtCO2, FiCO2, RR,EtN2O, FiN2O, EtAA, FiAA. High Precision.
anesthesia agent analyzer used to measure EtCO2, FiCO2, RR, EtN2O, FiN2O, EtAA, FiAA.
Read More
Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
Update 255-hour historical data replay on PC through USB
Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
Suitable for clinical and emergency circumstance
SpO2, SpO2+CO2 selectable

Software Function
Professional Data Analysis Software for CO2 Monitoring
Connecting the palm monitor to PC through USB
Storing Unlimited patient’s data
Displaying ETCO2,SPO2 Trends Table
Controlling PC printer, outputting trend graph, trend table report
Recording and storage object’s respiration details in clinical


Inside Pump Made by
Main Unit’s Environment Requirement
Working:          Temperature: 5℃~50℃;
                        Relative humidity: 0~95%;
                        Atmosphere Pressure: 70.0KPa~106.0KPa
Storage:          Temperature: 0℃~70℃;
                       Relative humidity: 0~95%;
                        Atmosphere Pressure: 22.0KPa~120.0KPa


LED
Patient Alarm Indicator: Two colors: Yellow and Red
Sound Indicator
Loudspeaker:         Play alarm voices

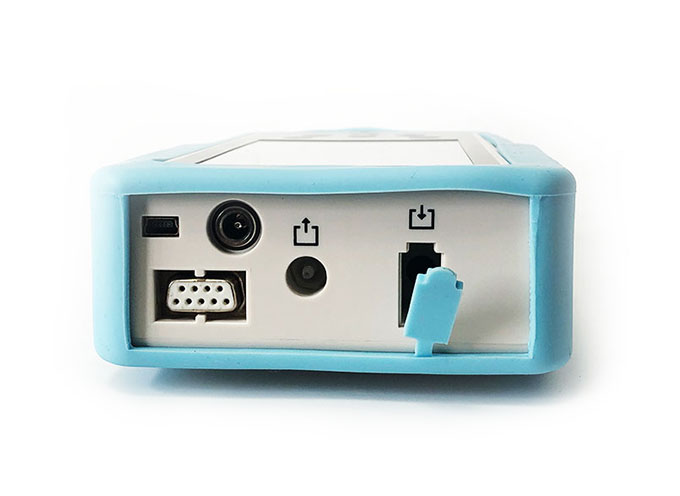

Interfaces

Power:                    12VDC power socket x 1

USB:                       MINI USB socket x 1

Measurement Specification
Principle:                 NDIR single beam optics
Sampling Rate:       90mL/min, ±10mL/min
Initialization Time:   Waveform displaying in 20 seconds

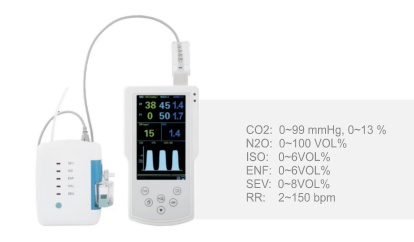

Range
CO2:                0~99 mmHg, 0~13 %
N2O:                0~100 VOL%
ISO:                 0~6VOL%
ENF:                0~6VOL%
SEV:                0~8VOL%
RR:                 2~150 bpm

Resolution
CO2:               0~40 mmHg    ±2 mmHg
                       40 ~99 mmHg  ±5% of reading

N2O:               0~100VOL%
                       ±(2.0 vol% +5% of reading)

ISO:               0~6VOL%
                      ±(0.3 vol% +2% of reading)

ENF:               0~6VOL%
                       ±(0.3 vol% +2% of reading)

SEV:               0~8VOL%
                       ±(0.3 vol% +2% of reading)

RR:                ±1 bpm
Apnea Alarm Time:    20~60s

 MAC value defines

  • 1.0MAC: under an atmospheric pressure condition, give a person or animal skin stimulation, 50% of people or animals not body dynamic response or escape reflection occurs, the inhalation anesthetics in alveolar concentration.
  • To achieve 95% of people don’t respond to stimuli, the MAC value should reach to 1.3.
  • When MAC value is 0.4,most patients will wake up.

Anesthetic agents
Enflurane:         1.68
Isoflurane:         1.16
Sevoflurane:     1.71
Halothane:        0.75
N2O:                 100%
Notice                Desflurane’s MAC1.0 values differ with age
Age:                  18-30   MAC 1.0  7.25%
Age:                   31-65   MAC 1.0  6.0%



Power Specification
Input Voltage:       12V DC
Input Current:       2.0 A

Physical Specification
Main Unit
Weight:               0.65Kg
Dimension:         192mm x 106mm x 44mm

Hardware Specification
TFT Screen
Type:                   Colorful TFT LCD
Dimension:          5.0 inch

Battery
Quantity:             4
Model:                Rechargeable lithium battery
Voltage:              3.7 V
Capacity:            2200mAh
Working time:     10 hours
Recharging time: 4 Hours




Product Features

    Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
    Update 255-hour historical data replay on PC through USB
    Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
    Suitable for clinical and emergency circumstance
    SpO2, SpO2+CO2 selectable

    Software Function
    Professional Data Analysis Software for CO2 Monitoring
    Connecting the palm monitor to PC through USB
    Storing Unlimited patient’s data
    Displaying ETCO2,SPO2 Trends Table
    Controlling PC printer, outputting trend graph, trend table report
    Recording and storage object’s respiration details in clinical


    Inside Pump Made by

Product Specifications

    Main Unit’s Environment Requirement
    Working:          Temperature: 5℃~50℃;
                            Relative humidity: 0~95%;
                            Atmosphere Pressure: 70.0KPa~106.0KPa
    Storage:          Temperature: 0℃~70℃;
                           Relative humidity: 0~95%;
                            Atmosphere Pressure: 22.0KPa~120.0KPa


    LED
    Patient Alarm Indicator: Two colors: Yellow and Red
    Sound Indicator
    Loudspeaker:         Play alarm voices
    Interfaces

    Power:                    12VDC power socket x 1

    USB:                       MINI USB socket x 1

    Measurement Specification
    Principle:                 NDIR single beam optics
    Sampling Rate:       90mL/min, ±10mL/min
    Initialization Time:   Waveform displaying in 20 seconds

    Range
    CO2:                0~99 mmHg, 0~13 %
    N2O:                0~100 VOL%
    ISO:                 0~6VOL%
    ENF:                0~6VOL%
    SEV:                0~8VOL%
    RR:                 2~150 bpm

    Resolution
    CO2:               0~40 mmHg    ±2 mmHg
                           40 ~99 mmHg  ±5% of reading

    N2O:               0~100VOL%
                           ±(2.0 vol% +5% of reading)

    ISO:               0~6VOL%
                          ±(0.3 vol% +2% of reading)

    ENF:               0~6VOL%
                           ±(0.3 vol% +2% of reading)

    SEV:               0~8VOL%
                           ±(0.3 vol% +2% of reading)

    RR:                ±1 bpm
    Apnea Alarm Time:    20~60s

     MAC value defines

    • 1.0MAC: under an atmospheric pressure condition, give a person or animal skin stimulation, 50% of people or animals not body dynamic response or escape reflection occurs, the inhalation anesthetics in alveolar concentration.
    • To achieve 95% of people don’t respond to stimuli, the MAC value should reach to 1.3.
    • When MAC value is 0.4,most patients will wake up.

    Anesthetic agents
    Enflurane:         1.68
    Isoflurane:         1.16
    Sevoflurane:     1.71
    Halothane:        0.75
    N2O:                 100%
    Notice                Desflurane’s MAC1.0 values differ with age
    Age:                  18-30   MAC 1.0  7.25%
    Age:                   31-65   MAC 1.0  6.0%



    Power Specification
    Input Voltage:       12V DC
    Input Current:       2.0 A

    Physical Specification
    Main Unit
    Weight:               0.65Kg
    Dimension:         192mm x 106mm x 44mm

    Hardware Specification
    TFT Screen
    Type:                   Colorful TFT LCD
    Dimension:          5.0 inch

    Battery
    Quantity:             4
    Model:                Rechargeable lithium battery
    Voltage:              3.7 V
    Capacity:            2200mAh
    Working time:     10 hours
    Recharging time: 4 Hours
