C-Scan®

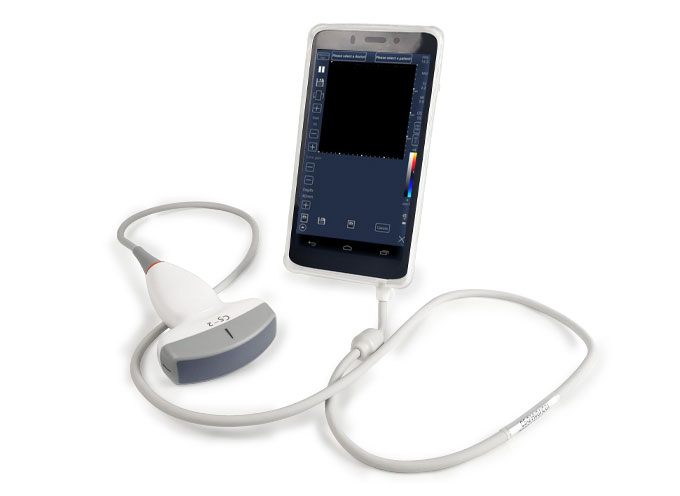

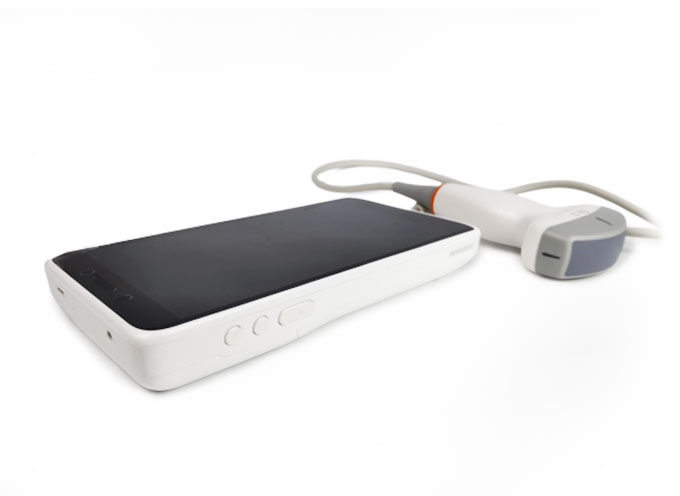

C-Scan®  is a handheld, pocket-sized ultrasound tool that provides real-time grayscale anatomic and color Doppler blood flow images with touch screen.

It is the preliminary screening tool for you " from patient to patient " within your primary, critical, or specialty care clinical environment.

C-Scan®  is a handheld, pocket-sized ultrasound tool that provides real-time grayscale anatomic and color Doppler blood flow images with touch screen.

It is the preliminary screening tool for you " from patient to patient " within your primary, critical, or specialty care clinical environment.

Read More

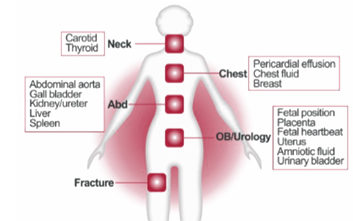

Clinical Applications:
Anesthesia
Line Placement (CVC, PICC)
Pain management
Point-of-Care(POC)
Vascular Access
Primary Care
Emergency & ICU
General Practitioners
Urological
OB/GYN
Abdominal
Pediatric Scanning

Benefits
Detect pericardial effusion, chest fluid or internal bleeding at ER or in ambulance, enabling prompt initiation of treatment
View fetus as they grow
Detect fetal heart beats
Monitor the amount of Amniotic fluid during delivery
Find plaque in Carotid, avoid stroke before it strikes
Place lines in veins with visual confidence
Find nodules in thyroids, livers or breasts during screening
Monitor stones in kidneys, gall bladders and bladders
Verify bone fractures without X-ray





Product Description   Handheld Ultrasound Scanner
Monitor:                       6 inch LCD high-resolution (1280*720) full touch screen
Probe Type                128 elements
Frequency                   Convex array 2-5MHZ / Linear array 5-10MHZ
Displaying Mode         B, M,C,B+B,B+M
Cine-loop                    1024 Frames
Frame Rate                 Convex:16fps / Linear:24ps
Depth                           Convex:≤200mm / Linear: ≤70mm
Grayscale                    256 level
Gain                            Convex: 0~150dB adjustable
                                     Linear: 0~120dB adjustable
Image Processing        Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
Power                          Built-in battery(5400mAh) to support 2h for continuous scanning
Image Format             JPEG, DICOM
Measurement              Length, Area, Arrow, Angle, Perimeter, Text.
Camera                       5M auto focus
Wireless Connection WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM)
Memory                       64GB
Connection Interface Micro USB2.0, HDMI,3.5mm headphone jack,
Operating System Android
Printer                          WIFI printer
File Management Patient file & image file
Cloud                          Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform
Technical Training Online and offline tutorial, self-built online training material
Remote Software Update Yes
Size                           165*85*23mm
Weight                       Convex:570g / Linear:550g

Standard:

The Device&Ultrasound  probe ....1Pcs
USB wire   .................................... 1Pcs
Adapter  ....................................... 1Pcs

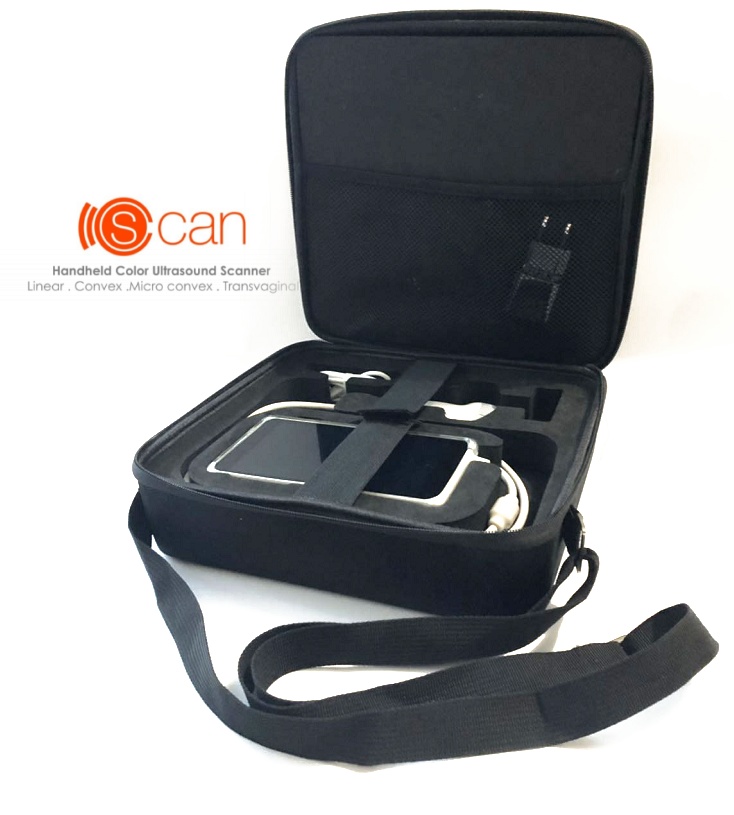

Carrying bag   .............................. 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

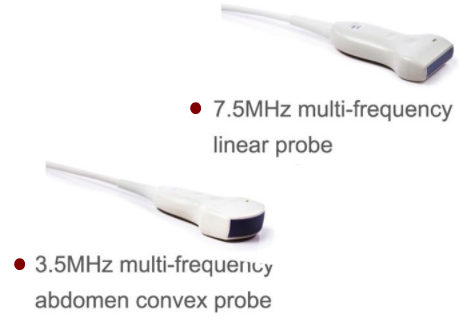

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
3.5MHz micro-convex probe
WIFI printer

Product Features

    Clinical Applications:
    Anesthesia
    Line Placement (CVC, PICC)
    Pain management
    Point-of-Care(POC)
    Vascular Access
    Primary Care
    Emergency & ICU
    General Practitioners
    Urological
    OB/GYN
    Abdominal
    Pediatric Scanning

    Benefits
    Detect pericardial effusion, chest fluid or internal bleeding at ER or in ambulance, enabling prompt initiation of treatment
    View fetus as they grow
    Detect fetal heart beats
    Monitor the amount of Amniotic fluid during delivery
    Find plaque in Carotid, avoid stroke before it strikes
    Place lines in veins with visual confidence
    Find nodules in thyroids, livers or breasts during screening
    Monitor stones in kidneys, gall bladders and bladders
    Verify bone fractures without X-ray





Product Specifications

    Product Description   Handheld Ultrasound Scanner
    Monitor:                       6 inch LCD high-resolution (1280*720) full touch screen
    Probe Type                128 elements
    Frequency                   Convex array 2-5MHZ / Linear array 5-10MHZ
    Displaying Mode         B, M,C,B+B,B+M
    Cine-loop                    1024 Frames
    Frame Rate                 Convex:16fps / Linear:24ps
    Depth                           Convex:≤200mm / Linear: ≤70mm
    Grayscale                    256 level
    Gain                            Convex: 0~150dB adjustable
                                         Linear: 0~120dB adjustable
    Image Processing        Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
    Power                          Built-in battery(5400mAh) to support 2h for continuous scanning
    Image Format             JPEG, DICOM
    Measurement              Length, Area, Arrow, Angle, Perimeter, Text.
    Camera                       5M auto focus
    Wireless Connection WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM)
    Memory                       64GB
    Connection Interface Micro USB2.0, HDMI,3.5mm headphone jack,
    Operating System Android
    Printer                          WIFI printer
    File Management Patient file & image file
    Cloud                          Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform
    Technical Training Online and offline tutorial, self-built online training material
    Remote Software Update Yes
    Size                           165*85*23mm
    Weight                       Convex:570g / Linear:550g


Related Accessories

    Standard:

    The Device&Ultrasound  probe ....1Pcs
    USB wire   .................................... 1Pcs
    Adapter  ....................................... 1Pcs
    Carrying bag   .............................. 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    7.5MHz high-frequency linear array probe
    6.5MHz intra-cavity (trans-vaginal) probe
    3.5MHz micro-convex probe
    WIFI printer
