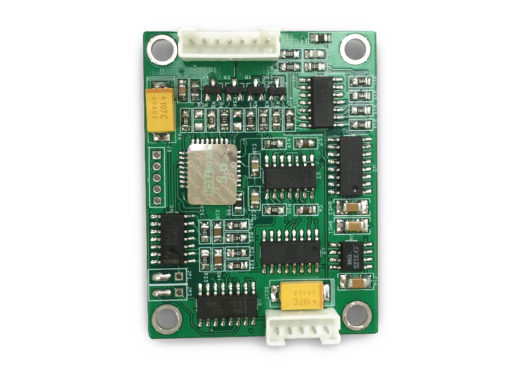

MD-200 analog SpO2 module
MD-200 Analog SpO2 module
SpO2 Module Compatible with BCI (probe & Transfer Protocol ),high accuracy and small in size
MD-200 Analog SpO2 module
SpO2 Module Compatible with BCI (probe & Transfer Protocol ),high accuracy and small in size
Read More

Small size and easy installation; reliability high accuracy
Enhanced signal processing capabilities reduced per-fusion of human movement and the impact of weak
Applicable to adults infants and young children and newborn
Operating voltage 3.3 v Low-Voltage
Can display maps and pulse oxygen column
Transfer Protocol BCI compatible
Compatible with BCI probe

Oxygen saturation BF – type

Power Requirements
Operating voltage 5V ±0.1V DC
Power 40mA

Environmental conditions
Operating temperature 5-50℃
Storage temperature  -20℃ - +70 ℃
Relative humidity  0-85% (non-condensing)
Size 40 x 52 x 10mm

SPO2
Measuring range 50 -100% SPO2
Measurement accuracy ±2 @ 50-100% SPO2
Less than 50% have not been defined

Pulse rate
Measuring range  30-235 times / min
Measurement accuracy Greater than ±2 times / min or ±2%
Bar chart 0-8
Serial transmission logic capacity TTL/RS232 Serial Port

Standards
IEC60601-1 SPO2: BF-type
IEC60601-1-27: 1994 EN865
ANSI/AAMI SP10: 1992 EN12470-4:2001
ANSI/AAMI EC 13-92
Transfer Protocol BCI compatible. Compatible  with BCI probe
Options:

SpO2 Cable (New born)
SpO2 Cable (Adult finger clip)
SpO2 Cable (Child finger clip)
SpO2 Cable (adult soft tip)
SpO2 Cable (Child soft tip)
SpO2 Cable (nfant soft tip)
SpO2 Cable (Neonate silicone wrap)
SpO2 Cable (multi-site Y type)
SpO2 Cable (with separate wrap)
SpO2 Cable (adult ear clip)
SpO2 Cable (veterinary tongue  clip)
SpO2 Cable (multi-site clip)
SpO2 Cable (adult Forehead)
SpO2 Cable (multi-site Y type with foam wrap)
PC Connector (RS232)
USB Power Supplier
Female SpO2 Socket

Product Features

    Small size and easy installation; reliability high accuracy
    Enhanced signal processing capabilities reduced per-fusion of human movement and the impact of weak
    Applicable to adults infants and young children and newborn
    Operating voltage 3.3 v Low-Voltage
    Can display maps and pulse oxygen column
    Transfer Protocol BCI compatible
    Compatible with BCI probe

Product Specifications

    Oxygen saturation BF – type

    Power Requirements
    Operating voltage 5V ±0.1V DC
    Power 40mA

    Environmental conditions
    Operating temperature 5-50℃
    Storage temperature  -20℃ - +70 ℃
    Relative humidity  0-85% (non-condensing)
    Size 40 x 52 x 10mm

    SPO2
    Measuring range 50 -100% SPO2
    Measurement accuracy ±2 @ 50-100% SPO2
    Less than 50% have not been defined

    Pulse rate
    Measuring range  30-235 times / min
    Measurement accuracy Greater than ±2 times / min or ±2%
    Bar chart 0-8
    Serial transmission logic capacity TTL/RS232 Serial Port

    Standards
    IEC60601-1 SPO2: BF-type
    IEC60601-1-27: 1994 EN865
    ANSI/AAMI SP10: 1992 EN12470-4:2001
    ANSI/AAMI EC 13-92
    Transfer Protocol BCI compatible. Compatible  with BCI probe

Related Accessories

    Options:

    SpO2 Cable (New born)
    SpO2 Cable (Adult finger clip)
    SpO2 Cable (Child finger clip)
    SpO2 Cable (adult soft tip)
    SpO2 Cable (Child soft tip)
    SpO2 Cable (nfant soft tip)
    SpO2 Cable (Neonate silicone wrap)
    SpO2 Cable (multi-site Y type)
    SpO2 Cable (with separate wrap)
    SpO2 Cable (adult ear clip)
    SpO2 Cable (veterinary tongue  clip)
    SpO2 Cable (multi-site clip)
    SpO2 Cable (adult Forehead)
    SpO2 Cable (multi-site Y type with foam wrap)
    PC Connector (RS232)
    USB Power Supplier
    Female SpO2 Socket
