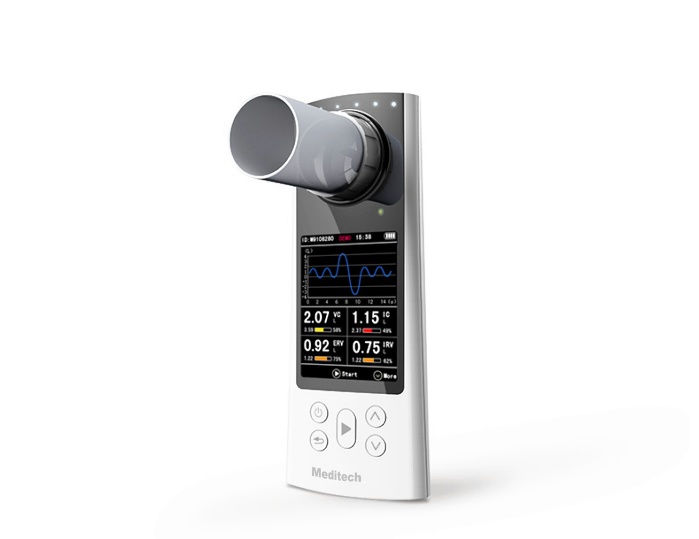

Spirometer Type: plus
Type: plus Spirometer is a hand-held equipment for checking lung conditions, adopts the infrared mode for measuring relative items, it is applicable for hospital, clinic, family for routine test.
large Color Screen
large Color Screen
Type: plus Spirometer is a hand-held equipment for checking lung conditions, adopts the infrared mode for measuring relative items, it is applicable for hospital, clinic, family for routine test.
large Color Screen
Read More large Color Screen
New version 2019/2020 of Type " plus "
Large and color screen
Forced Vital Capacity (FVC).
Forced Expired Volume in one second (FEV1).
The ratio of FEV1 and FVC (FEV1/FVC).
Peak expiratory flow (PEF).
25% flow of the FVC (FEF25).
50% flow of the FVC (FEF50).
75% flow of the FVC(FEF75) and average flow between
25% and 75% of the FVC(FEF2575) can be measured. Besides.
The user condition can be shown by the ratio of the measured value and the predicted value.

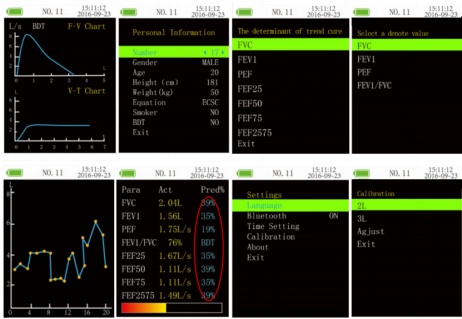

Flow rate-volume chart, volume-time chart display.
Data memory, delete, upload and review.
Trend chart display.
Calibration.
Information prompts when volume or flow goes beyond the limits.
Automatic power off when there is no operation in two minutes.
Rechargeable lithium battery and with charging tips.
Battery power display.
USB Socket for PC Software
Bluetooth module built-in

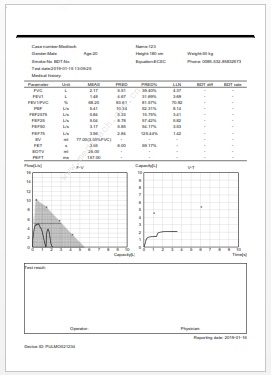

Comes with PC Software ( printing report)
Large and color screen
Forced Vital Capacity (FVC).
Forced Expired Volume in one second (FEV1).
The ratio of FEV1 and FVC (FEV1/FVC).
Peak expiratory flow (PEF).
25% flow of the FVC (FEF25).
50% flow of the FVC (FEF50).
75% flow of the FVC(FEF75) and average flow between
25% and 75% of the FVC(FEF2575) can be measured. Besides.
The user condition can be shown by the ratio of the measured value and the predicted value.
Flow rate-volume chart, volume-time chart display.
Data memory, delete, upload and review.
Trend chart display.
Calibration.
Information prompts when volume or flow goes beyond the limits.
Automatic power off when there is no operation in two minutes.
Rechargeable lithium battery and with charging tips.
Battery power display.
USB Socket for PC Software
Bluetooth module built-in
Comes with PC Software ( printing report)
Display mode: 2.8'' color TFT-LCD
Display resolution: 240*320
Volume range: 0~10 L
Volume accuracy: ±3 % or ± 0.05 L(whichever is greater)
Flow range: 0 L/s~16 L/s
Flow accuracy: ±5 % or ±0.2 L /s(whichever is greater)
Working current: 200 mA
Power supply: DC3.7 V rechargeable lithium battery
Safety class: internally powered equipment, type BF applied part
Display resolution: 240*320
Volume range: 0~10 L
Volume accuracy: ±3 % or ± 0.05 L(whichever is greater)
Flow range: 0 L/s~16 L/s
Flow accuracy: ±5 % or ±0.2 L /s(whichever is greater)
Working current: 200 mA
Power supply: DC3.7 V rechargeable lithium battery
Safety class: internally powered equipment, type BF applied part
Standards:
Mouth Piece ................. 1Pcs
USB Cable ....................... 1Pcs
Cleaning Cloth ................ 1Pcs
USB Charger ................... 1Pcs
Mouth Piece ................. 1Pcs
USB Cable ....................... 1Pcs
Cleaning Cloth ................ 1Pcs
USB Charger ................... 1Pcs
Product Features
-
New version 2019/2020 of Type " plus "
Large and color screen
Forced Vital Capacity (FVC).
Forced Expired Volume in one second (FEV1).
The ratio of FEV1 and FVC (FEV1/FVC).
Peak expiratory flow (PEF).
25% flow of the FVC (FEF25).
50% flow of the FVC (FEF50).
75% flow of the FVC(FEF75) and average flow between
25% and 75% of the FVC(FEF2575) can be measured. Besides.
The user condition can be shown by the ratio of the measured value and the predicted value.
Flow rate-volume chart, volume-time chart display.
Data memory, delete, upload and review.
Trend chart display.
Calibration.
Information prompts when volume or flow goes beyond the limits.
Automatic power off when there is no operation in two minutes.
Rechargeable lithium battery and with charging tips.
Battery power display.
USB Socket for PC Software
Bluetooth module built-in
Comes with PC Software ( printing report)
Product Specifications
Related Accessories
Related items
Spirometer Type: P
Palm size Spirometer with LCD screen PEF and FEV1 test Meet ATS American Thoracic Society ,1994 update standardization. Suitable for hospital or home. Maximum of records is 600 measurements
