EKG1212T

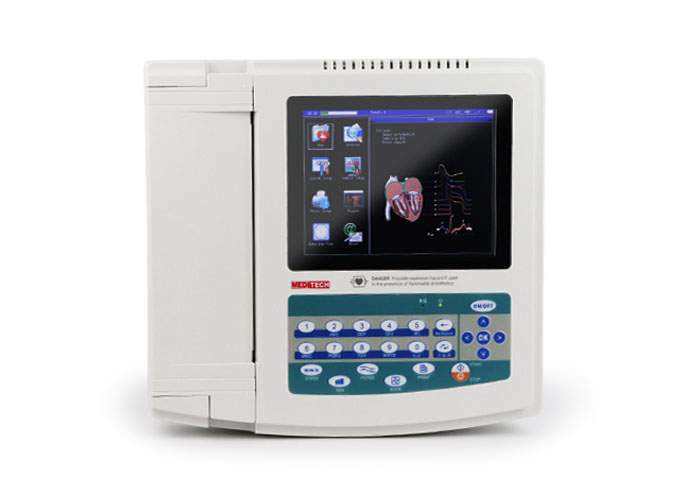

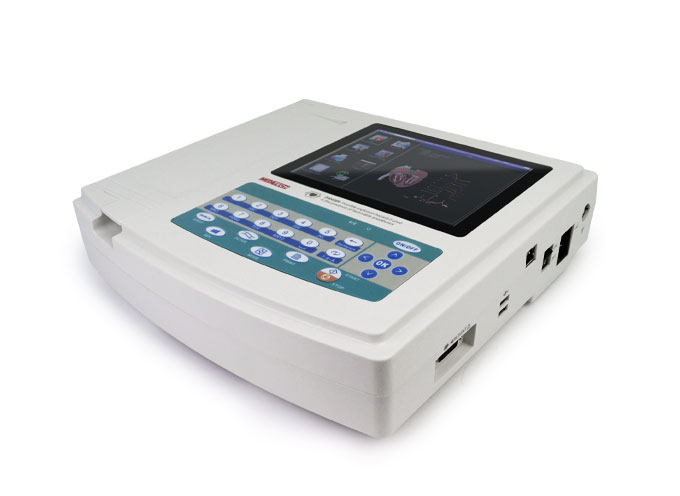

EKG1212T  ECG machine with 8 inch Touch and color screen,Multi-language report formats

12 channel ECG Machine , has large capacity (10 000  exam),
12 Leads ECG simultaneous acquisition,digital signal processor,
Built in battery and AC/DC power supply

Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F  with touch keyboard.

Comes with PC Software and USB Connector
EKG1212T  ECG machine with 8 inch Touch and color screen,Multi-language report formats

12 channel ECG Machine , has large capacity (10 000  exam),
12 Leads ECG simultaneous acquisition,digital signal processor,
Built in battery and AC/DC power supply

Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F  with touch keyboard.

Comes with PC Software and USB Connector
Read More
12 Channel Electrocardiograph
8" TFT Color Screen

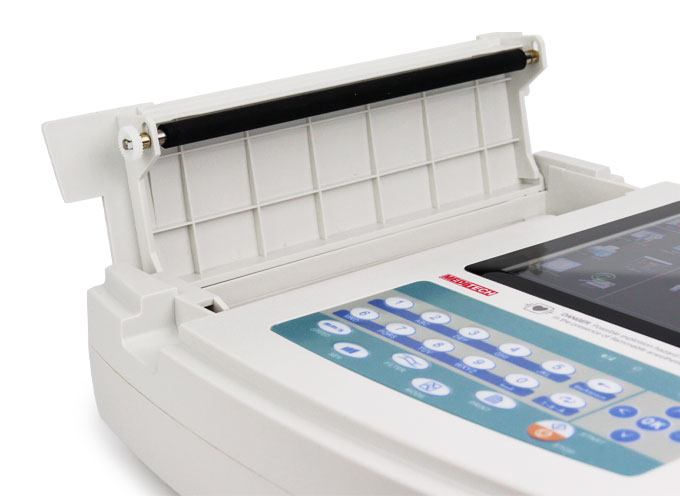

210 mm Thermal Paper printing

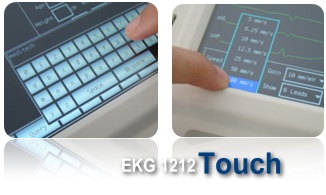

Touch screen and soft keyboard control more convenient for operation.
Simultaneous 12 leads display.
AC filter ba
seline filter and EMG filter of the ECG signals.
Auto-analysis and auto-interpretation.
Provide more than 10 printing modes.
Up to 10 000 cases in internal memory.
Can print 90 minutes and print out 150 pcs ECG continually.


EKG 1212Touch keyboard

Language :
English
Chinese
Spanish
Italian
German
French
Russian
Portuguese
Polish
Turkish


Comes with PC Software for data transfer




More details click here

Lead: Standard 12 leads
Patient leak current: <10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant>3.2s
CMRR: >60dB
EMG interference filter: 25/35Hz(-3dB)
Recording way: Thermal array printing system
Specification of recording paper: 80mm(W)×20m(L) high-speed thermal paper
Paper speed:
  • Auto record: 25mm/s 50mm/s error:±5%
  • Rhythm record: 25mm/s 50mm/s error:±5%
  • Manual record:5mm/s 6.25mm/s10mm/s 12.5mm/s 25mm/s 50mm/s error:±5%.
Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV .
Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing.
Manual record: Record setup according to record format manually changing leads.
Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: Class I Type CF defibrillation proof applied part.
Enduring polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V)

Operation
a) Environment temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply:  AC:100~240V50/60Hz
                            DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and Storage
a) Environment temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input way: Floating and defibrillation protection


Standard:

Chest Electrode       ......... 6Pcs
Clamp Electrode    ........... 4Pcs
EKG Cable       ................. 1Pcs
USB Cable   ..................... 1Pcs
CD "CardioSoft pro"  ........ 1Pcs
Ground Wire    .................. 1Pcs
Paper Role  ...................... 1Pcs
Power cable  .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Case
Thermal Paper
Trolley
PC(Computer)accessories
Printer accessories

Product Features

    12 Channel Electrocardiograph
    8" TFT Color Screen
    210 mm Thermal Paper printing
    Touch screen and soft keyboard control more convenient for operation.
    Simultaneous 12 leads display.
    AC filter ba
    seline filter and EMG filter of the ECG signals.
    Auto-analysis and auto-interpretation.
    Provide more than 10 printing modes.
    Up to 10 000 cases in internal memory.
    Can print 90 minutes and print out 150 pcs ECG continually.


    EKG 1212Touch keyboard

    Language :
    English
    Chinese
    Spanish
    Italian
    German
    French
    Russian
    Portuguese
    Polish
    Turkish


    Comes with PC Software for data transfer




    More details click here


Product Specifications

    Lead: Standard 12 leads
    Patient leak current: <10μA
    Input impedance: ≥5MΩ
    Frequency response: 1Hz~75Hz
    Time constant: Time constant>3.2s
    CMRR: >60dB
    EMG interference filter: 25/35Hz(-3dB)
    Recording way: Thermal array printing system
    Specification of recording paper: 80mm(W)×20m(L) high-speed thermal paper
    Paper speed:
    • Auto record: 25mm/s 50mm/s error:±5%
    • Rhythm record: 25mm/s 50mm/s error:±5%
    • Manual record:5mm/s 6.25mm/s10mm/s 12.5mm/s 25mm/s 50mm/s error:±5%.
    Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV .
    Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing.
    Manual record: Record setup according to record format manually changing leads.
    Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1)
    Product safety type: Class I Type CF defibrillation proof applied part.
    Enduring polarization voltage: ±300mV
    Noise level: ≤15μVp-p
    Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V)

    Operation
    a) Environment temperature: +5℃~+35℃
    b) Relative humidity: ≤80%
    c) Power supply:  AC:100~240V50/60Hz
                                DC:7.4V 3700 mAh rechargeable lithium battery
    d) Atmospheric pressure: 86kPa~106kPa

    Transportation and Storage
    a) Environment temperature: -10℃~55℃
    b) Relative humidity: ≤95%
    c) Atmospheric pressure: 50kPa~106kPa
    Input way: Floating and defibrillation protection


Related Accessories

    Standard:

    Chest Electrode       ......... 6Pcs
    Clamp Electrode    ........... 4Pcs
    EKG Cable       ................. 1Pcs
    USB Cable   ..................... 1Pcs
    CD "CardioSoft pro"  ........ 1Pcs
    Ground Wire    .................. 1Pcs
    Paper Role  ...................... 1Pcs
    Power cable  .................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Case
    Thermal Paper
    Trolley
    PC(Computer)accessories
    Printer accessories
