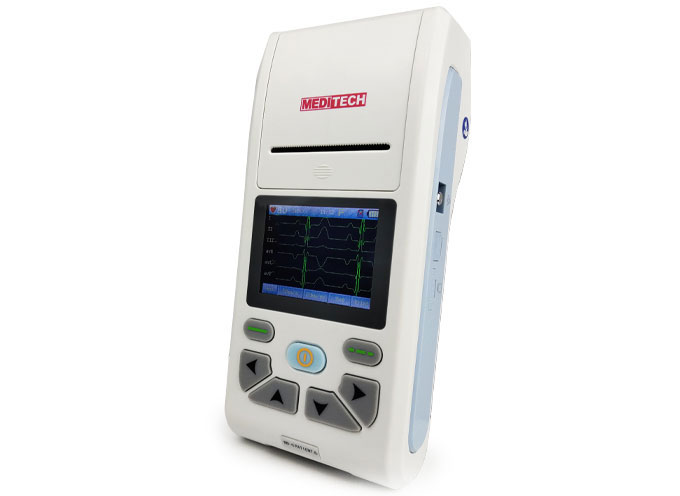

EKG101T
EKG101T  Smart handheld Three channel ECG with interpretation, Color&Touch screen,

Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F  with touch keyboard.

Storage more than 450 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
EKG101T  Smart handheld Three channel ECG with interpretation, Color&Touch screen,

Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F  with touch keyboard.

Storage more than 450 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
Read More
High resolution thermal-array output system (8 dots/mm) 150Hz.
Large Screen shows 12/6/3/1 Lead(s) and remark real-time and continuously. ECG101T Display Keyboard
The remark includes: lead sign sensitivity paper speed filter state etc.
Touch TFT screen shows the working status
Safety Class: Class I Type CF applied part with defibrillation protection.
AC and DC. Power Supply and built-in lithium polymer rechargeable battery
Record 450 pieces of ECG and review the stored cases and patient information anytime.
Print & store different time length of case to convenient for doctor's case review and statistics.
Selectable print mode print length gain paper speed and report print selection. And for 4 hours continually under the best DC state.

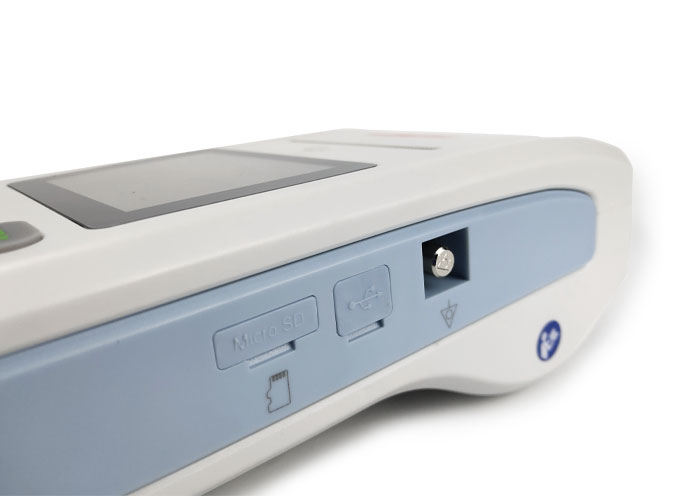

Exterior SD card convenient for use. With SD card the device can store 100 case most.
USB2.0 port working mode can be selected freely between store and synchronization.
Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter.
Auto-measurement interpretation and auto-diagnosis of regular ECG parameter
Small in Size 1.20 Size: 207mm (L) ×96mm (W) ×62mm (H) and light in weight 0.6 kg

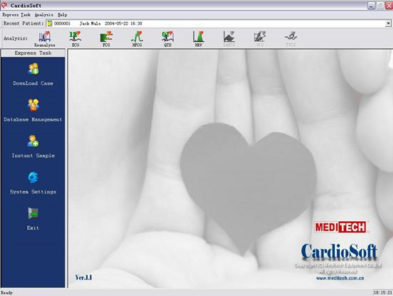

Comes with PC Software for data transfer




More details click here
Lead: Standard 12 leads
Patient leak current: <10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant>3.2s
CMRR: >60dB
EMG interference filter: 25/35Hz(-3dB)
Recording way: Thermal array printing system
Specification of recording paper: 50mm(W)×20m(L) high-speed thermal paper
Paper speed:
  • Auto record: 25mm/s 50mm/s error:±5%
  • Rhythm record: 25mm/s 50mm/s error:±5%
  • Manual record:5mm/s 6.25mm/s10mm/s 12.5mm/s 25mm/s 50mm/s error:±5%.
Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV .
Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing.
Manual record: Record setup according to record format manually changing leads.
Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: Class I Type CF defibrillation proof applied part.
Enduring polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V)

Operation
a) Environment temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply:  AC:100~240V50/60Hz
                            DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and Storage
a) Environment temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input way: Floating and defibrillation protection


Size: 207mm(L)×96mm(W)×62mm(H)
Net Weight: 0.5Kg
Standard:

Chest Electrode       ......... 6Pcs
Clamp Electrode    ........... 4Pcs
EKG Cable       ................. 1Pcs
USB Cable   ..................... 1Pcs
CD "CardioSoft pro"  ........ 1Pcs
Ground Wire    .................. 1Pcs
Paper Role  ...................... 1Pcs
Power cable  .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Case
Thermal Paper
PC(Computer)accessories
Printer accessories

Product Features

    High resolution thermal-array output system (8 dots/mm) 150Hz.
    Large Screen shows 12/6/3/1 Lead(s) and remark real-time and continuously. ECG101T Display Keyboard
    The remark includes: lead sign sensitivity paper speed filter state etc.
    Touch TFT screen shows the working status
    Safety Class: Class I Type CF applied part with defibrillation protection.
    AC and DC. Power Supply and built-in lithium polymer rechargeable battery
    Record 450 pieces of ECG and review the stored cases and patient information anytime.
    Print & store different time length of case to convenient for doctor's case review and statistics.
    Selectable print mode print length gain paper speed and report print selection. And for 4 hours continually under the best DC state.
    Exterior SD card convenient for use. With SD card the device can store 100 case most.
    USB2.0 port working mode can be selected freely between store and synchronization.
    Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter.
    Auto-measurement interpretation and auto-diagnosis of regular ECG parameter
    Small in Size 1.20 Size: 207mm (L) ×96mm (W) ×62mm (H) and light in weight 0.6 kg


    Comes with PC Software for data transfer




    More details click here

Product Specifications

    Lead: Standard 12 leads
    Patient leak current: <10μA
    Input impedance: ≥5MΩ
    Frequency response: 1Hz~75Hz
    Time constant: Time constant>3.2s
    CMRR: >60dB
    EMG interference filter: 25/35Hz(-3dB)
    Recording way: Thermal array printing system
    Specification of recording paper: 50mm(W)×20m(L) high-speed thermal paper
    Paper speed:
    • Auto record: 25mm/s 50mm/s error:±5%
    • Rhythm record: 25mm/s 50mm/s error:±5%
    • Manual record:5mm/s 6.25mm/s10mm/s 12.5mm/s 25mm/s 50mm/s error:±5%.
    Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV .
    Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing.
    Manual record: Record setup according to record format manually changing leads.
    Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1)
    Product safety type: Class I Type CF defibrillation proof applied part.
    Enduring polarization voltage: ±300mV
    Noise level: ≤15μVp-p
    Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V)

    Operation
    a) Environment temperature: +5℃~+35℃
    b) Relative humidity: ≤80%
    c) Power supply:  AC:100~240V50/60Hz
                                DC:7.4V 3700 mAh rechargeable lithium battery
    d) Atmospheric pressure: 86kPa~106kPa

    Transportation and Storage
    a) Environment temperature: -10℃~55℃
    b) Relative humidity: ≤95%
    c) Atmospheric pressure: 50kPa~106kPa
    Input way: Floating and defibrillation protection


    Size: 207mm(L)×96mm(W)×62mm(H)
    Net Weight: 0.5Kg

Related Accessories

    Standard:

    Chest Electrode       ......... 6Pcs
    Clamp Electrode    ........... 4Pcs
    EKG Cable       ................. 1Pcs
    USB Cable   ..................... 1Pcs
    CD "CardioSoft pro"  ........ 1Pcs
    Ground Wire    .................. 1Pcs
    Paper Role  ...................... 1Pcs
    Power cable  .................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Case
    Thermal Paper
    PC(Computer)accessories
    Printer accessories
